Mini-Split Installation for Additions, Sunrooms & Garages in North Birmingham

The central HVAC system in most Birmingham-area homes was not designed to condition a detached garage, a sunroom addition, or a bonus room over the garage. Extending ductwork into these spaces is expensive, often impractical, and typically results in poor airflow because the original system was sized without that load.

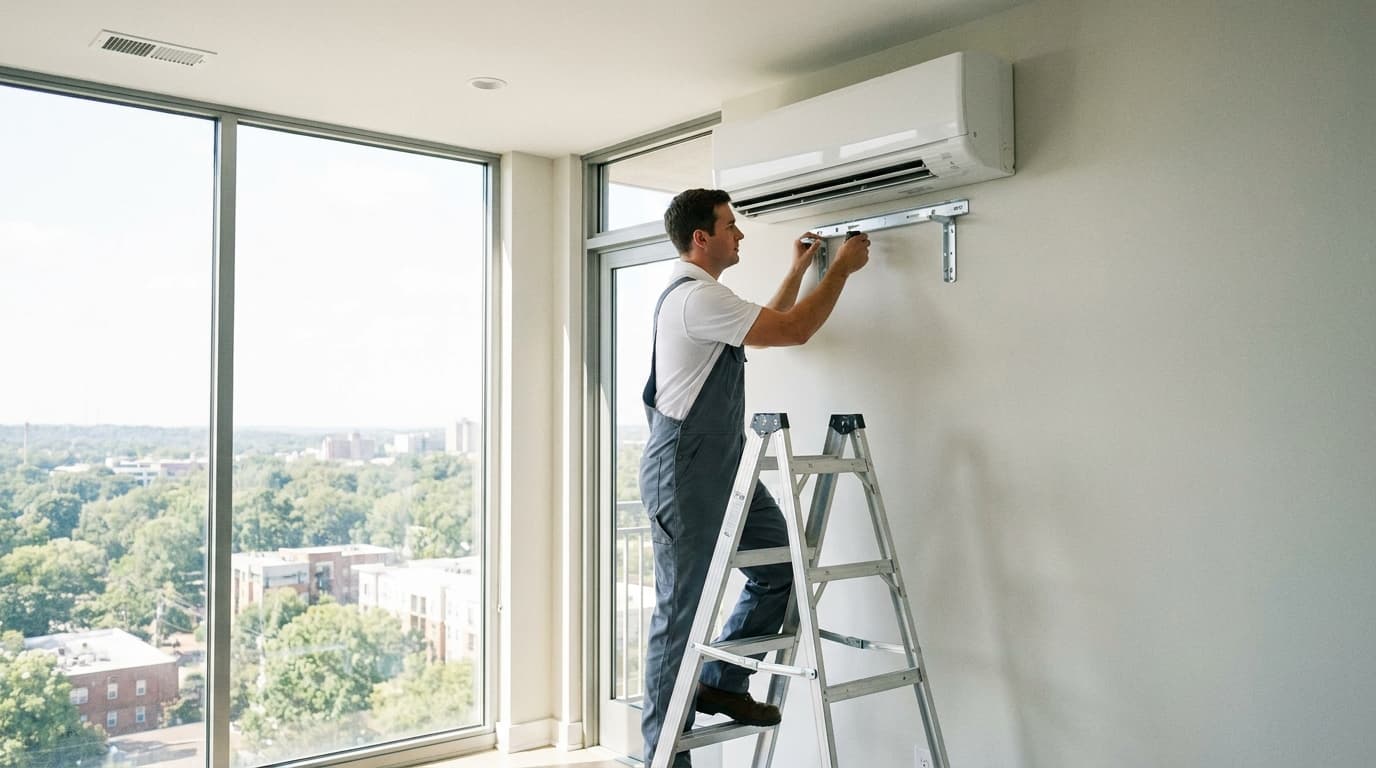

A ductless mini-split solves this cleanly. One outdoor condenser, one or more indoor air handlers, refrigerant lines run through a small penetration in the wall. No ductwork. No major construction. Precise temperature control in the space that needs it.

Lockwell HVAC installs Mitsubishi, Fujitsu, and Daikin ductless systems across Gardendale, Bessemer, Fultondale, and the broader Birmingham metro.

Getting the BTU count right for a garage is not a simple square-footage lookup. A detached garage in Alabama has fundamentally different thermal characteristics than the house it sits behind.

Several factors drive garage cooling and heating load:

**Thermal envelope.** Is the garage insulated? Most detached garages in the Birmingham area have uninsulated metal doors, minimal wall insulation, and no ceiling insulation. An uninsulated 24x24 garage in July requires significantly more cooling capacity than the same square footage inside a well-insulated home. Per [ACCA Manual J standards](https://www.acca.org/knowledge/research), garage loads can be two to three times higher per square foot than conditioned living space because of the envelope deficiency.

**Use pattern and internal heat gain.** A woodworking shop with multiple power tools generates far more heat than a parking garage. A home gym with two people working out adds 1,000 BTU per hour or more. We account for how the space is actually used, not just its dimensions.

**Attached versus detached.** Attached garages share a wall with the conditioned house, which reduces peak load slightly. Detached garages are fully exposed on all sides and require the system to work from a worse starting point.

**Door exposure and orientation.** A large garage door facing west in Birmingham takes direct afternoon sun from June through August. West-facing exposure adds meaningfully to cooling load during peak hours.

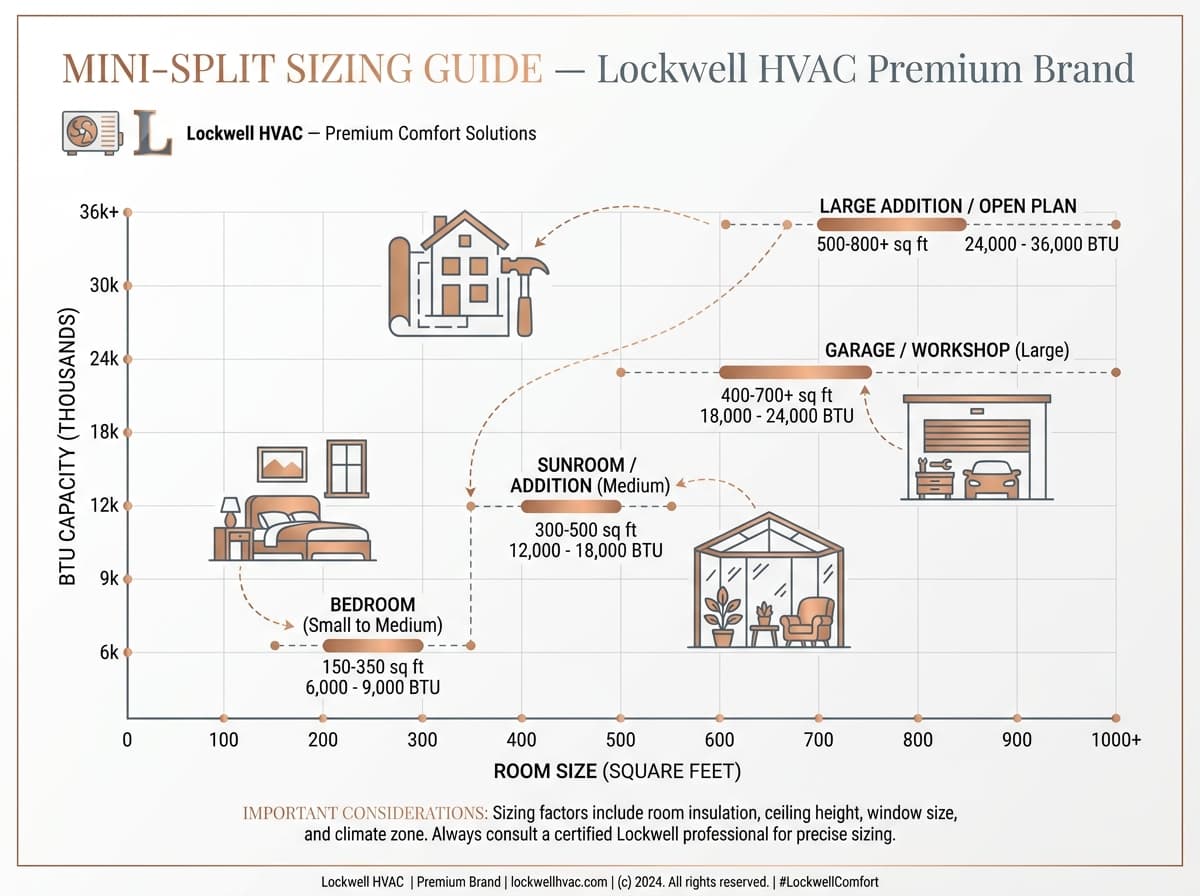

For a typical 576 sq ft (24x24) uninsulated attached garage in the Birmingham metro, a 12,000 to 18,000 BTU (1 to 1.5 ton) single-zone mini-split covers most scenarios. A detached garage of the same size with metal door and no insulation typically needs 18,000 to 24,000 BTU. We calculate, we don't guess.

**Single-zone wall-mount.** The most common configuration. One outdoor unit, one high-wall indoor air handler. Straightforward installation, low refrigerant line run, efficient operation. Mitsubishi's Mr. Slim MSZ series and Fujitsu's Halcyon AOU/ASU series are our primary recommendations for this application.

**Single-zone ceiling cassette.** For garages with high ceilings where a wall-mount would be blocked by storage or equipment. The cassette mounts flush in a drop ceiling or in a framed opening. Distributes air in four directions. Requires more installation labor but superior airflow distribution in large open spaces.

**Single-zone ducted.** For bonus rooms over garages where aesthetics matter and ceiling or wall space is limited. The indoor unit mounts in the attic space or a closet, with short duct runs to one or two registers. Looks like a traditional HVAC vent from inside the room.

**Multi-zone.** One outdoor unit serving two or more indoor air handlers. Appropriate when you need to condition both the garage and an adjacent workshop, or the garage and a bonus room above it. Multi-zone systems from Mitsubishi and Daikin maintain independent temperature control in each zone.

**Mitsubishi Electric Comfort.** The [Mitsubishi MXZ multi-zone and MSZ single-zone](https://www.mitsubishicomfort.com) systems are the industry benchmark for efficiency and reliability in challenging applications. Mitsubishi's hyper-heat technology maintains full heating capacity to 5°F outdoor ambient — relevant for Birmingham's occasional hard freezes. The INVERTER compressor modulates capacity from 10% to 100%, providing precise temperature control and humidity removal.

**Fujitsu General.** [Fujitsu's Halcyon series](https://www.fujitsugeneral.com) offers competitive efficiency ratings and strong low-ambient heating performance. The AOU/ASU 9RLS4 and 12RLS4 are popular for garage applications where budget is a consideration without sacrificing quality. Fujitsu uses the same inverter-driven scroll compressor technology as Mitsubishi.

**Daikin.** [Daikin's Aurora series](https://daikinac.com) brings reliable performance with a 10-year parts warranty on registered systems. The FTX and Aurora models cover the 9,000 to 24,000 BTU range appropriate for most garage and addition applications.

All three brands are registered with [AHRI](https://www.ahridirectory.org) for matched-system efficiency ratings. We install matched indoor/outdoor pairs and provide the AHRI certificate documenting the rated efficiency.

A mini-split system requires a dedicated 208V/240V circuit with appropriate amperage for the unit size. Typical requirements:

- 9,000 to 12,000 BTU: 15-amp, 208/240V dedicated circuit - 18,000 to 24,000 BTU: 20-amp, 208/240V dedicated circuit - Multi-zone outdoor units: 30 to 50 amp depending on total capacity

If your garage panel is sub-fed from the main panel, it may need a circuit added or upgraded. We assess the electrical situation at every mini-split install and coordinate panel work when needed. All electrical work meets NEC 2023 requirements and Alabama state code.

The disconnect switch required by code mounts adjacent to the outdoor unit. We install it as part of the standard installation package.

The indoor air handler produces condensate during cooling operation. In a garage or basement space where floor drains are common, this is simple — a gravity drain line runs to the floor drain. Where no drain is available, a condensate pump mounts on the air handler and pumps condensate to a drain, a slop sink, or outside.

We install the condensate management as part of the job, not as an afterthought. A backed-up condensate line causes water damage and mold in the wall cavity behind the air handler.

A mini-split is a heat pump, not just a cooling unit. In heat mode, it reverses the refrigerant cycle and moves heat from the outdoor air into the garage. This is how it heats in winter.

For most Birmingham garage applications — workshop use, protecting a stored vehicle, keeping paint or equipment above a minimum temperature — heat pump mode works well down to the low 20s°F. Below that, the coefficient of performance drops, but Birmingham rarely sustains temperatures below 20°F for extended periods.

For workshops where people are working at 30°F ambient temperatures and need rapid heat-up, supplemental electric resistance strip heat is available as an option on many air handlers. We size and recommend based on how the space is used.

Garage slabs are in direct contact with the soil. In summer, the slab stays relatively cool, which helps. In winter, the slab loses heat to the ground continuously. A mini-split conditions the air but cannot warm a concrete slab quickly.

If winter comfort in a workshop or home gym is the goal, adding insulation under any floor covering and a perimeter sill sealer between the slab and wall framing makes the mini-split's job dramatically easier and improves overall comfort. We mention this because conditioning a garage without addressing the slab-to-ground thermal connection is a common complaint we hear from homeowners who bought a mini-split and expected whole-body warmth in winter.

For detached garage installations, we also assess the electrical panel and can coordinate with a licensed electrician if the garage sub-panel needs expansion. For garages that will be used as home gyms or workshops, we often recommend adding blown-in insulation to the walls and ceiling first to reduce the required system size and improve year-round comfort.
